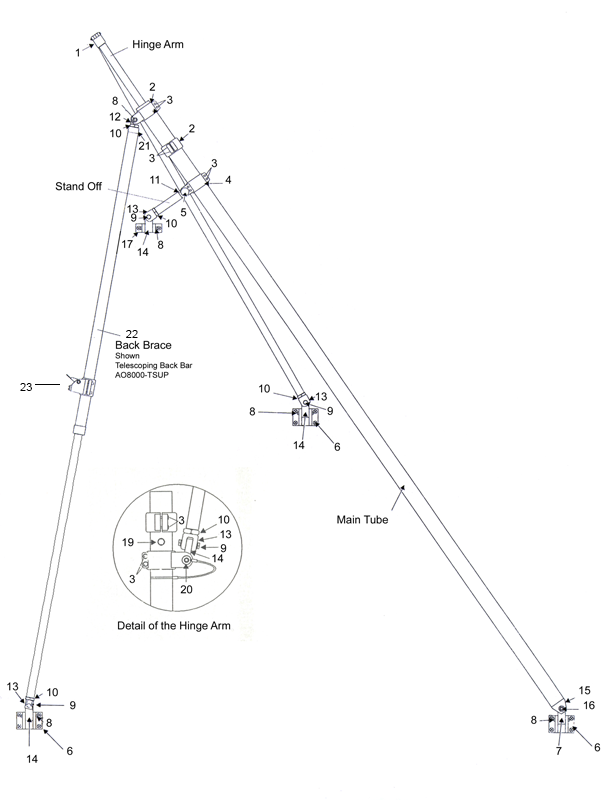

MX Holder Parts List

Click-On Part to display image of part.

Printable MX Holder Parts Guide

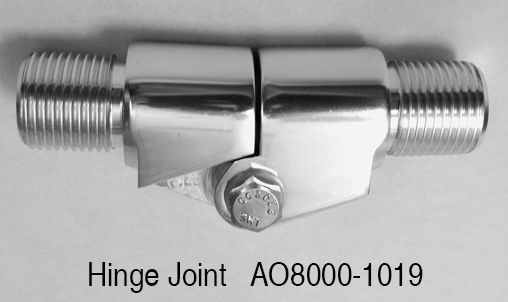

1. Hinge Joint
AO8000-1019
2. Brace Collar
AO8000-1000
3. Allen Screws
Call for sizes

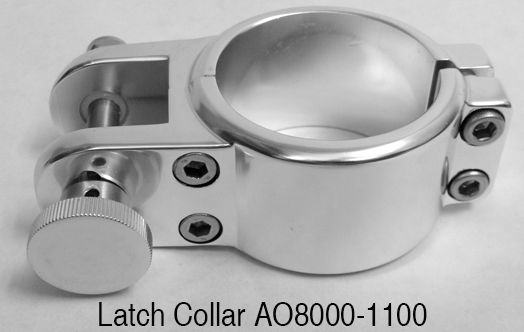

4. Latch Collar
AO8000-1100

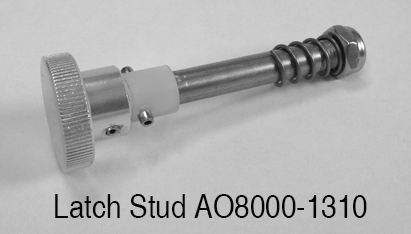

5. Latch Stud
AO8000-1310

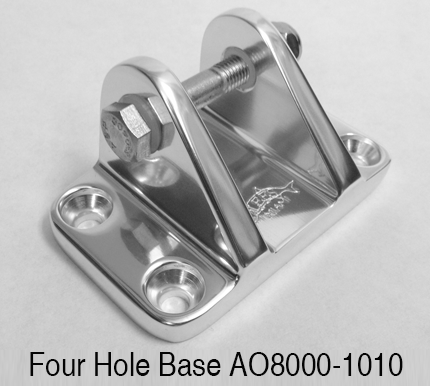

6. Four Hole Base
AO8000-1010

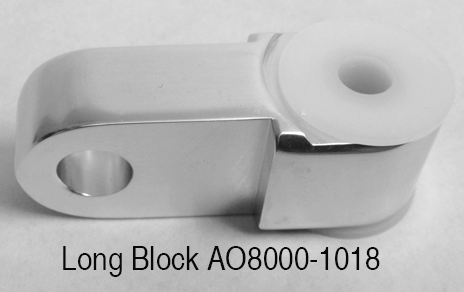

7. Long Block
AO8000-1018
8. Base Bolt &
Nut 5/16 x 2 1/4
AO8000-5005
9. Sm. Clevis Bolt &
Nut 5/16 x 1 1/2
AO8000-5008

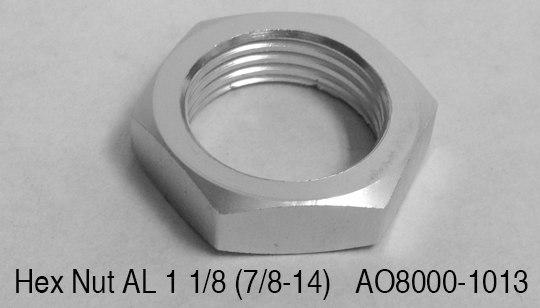

10. Hex Nut AL
1 1/8 (7/8-14)
AO8000-1013

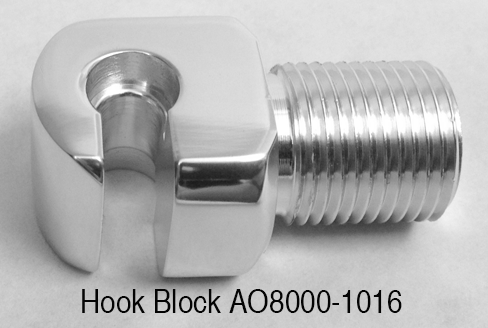

11. Hook Block
AO8000-1016

12. Senior Block
AO8000-1013

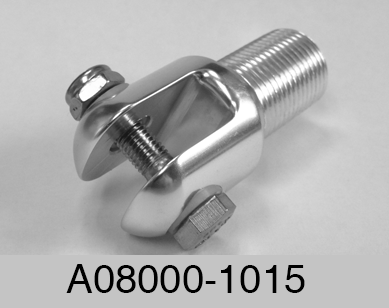

13. Sm Clevis
AO8000-1015

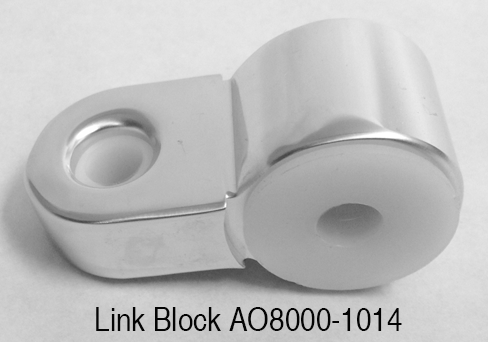

14. Link Block
AO8000-1014
15. Main Tube Clevis
AO8000-1020
16. MT Clevis Bolt & Nut
5/16-18 x 1 3/4
AO8000-5007

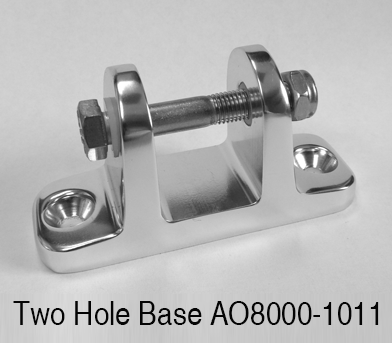

17. Two Hole Base
AO8000-1011
18. Main Tube
19. Bolt & Nut
5/16-18 x 2 1/2
AO8000-5009

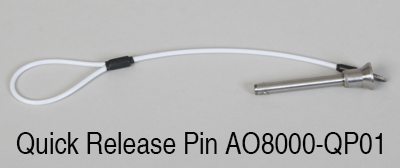

20. Quick Release Pin
AO8000-QP01
21. Adapter 1 3/8
Tube to 7/8-14
MX8900-9012
22 Telescoping Back Brace

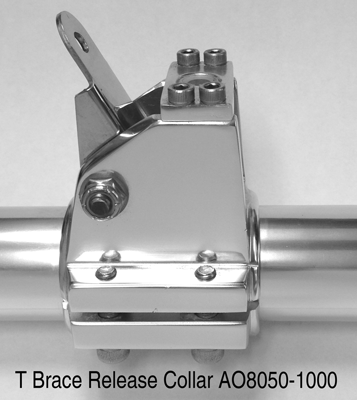

23. T-Brace Release Collar
AO8050-1000
