Aluminum Clamp-on Rod Holders
Aluminum rod holders that are as beautiful as they are functional. With no hassle or wear and tear on your boat you can install these rod holders with only an Allen Wrench. No lengthy trips to the tower builder for custom installation at custom prices. Simply place the two halves of the clamp around the pipe, insert the bolts and tighten. Install them wherever you like. If later, you don't like the position, simply move them.
These Rod Holders are the perfect solution for boats with wiring or hydraulic lines inside their tower legs. Now you can install Rod Holders on your Tower, Hard Top, T-Top, Radar Arch, Rails, Poling Platform or any structure made from standard size aluminum pipe. Constructed from Marine Grade Tubing, these Holders are anodized in either Gold or Silver after fabrication for 100% anodized protection. Black or White powder coat finish is also available. Holders are available in horizontal, vertical and 45 degree mounting styles. Avalible in five sizes. See Our Pipe Size Charts below to determine what size is needed. Click her for a printable Pipe Size Measuring Tape [pdf]
Horizontal

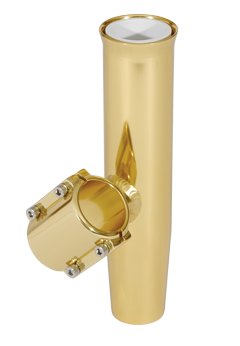

45 Degree
Vertical

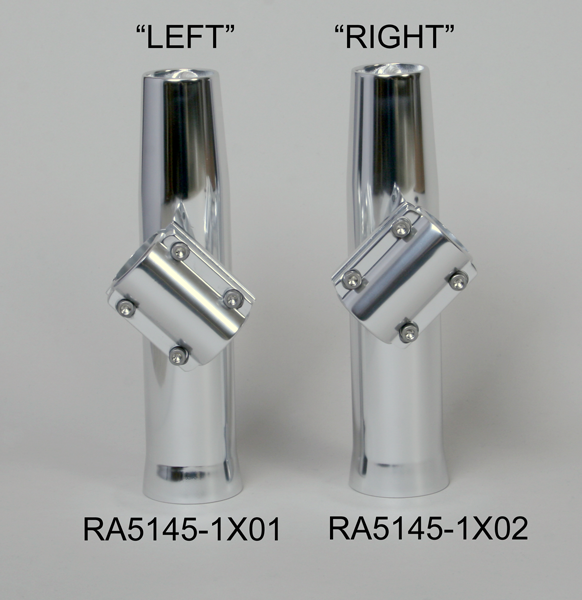

| VERTICAL MOUNT | HORIZONTAL MOUNT | 45 DEGREE MOUNT “Left Hand” |
45 DEGREE MOUNT “Right Hand” |
|
| RA5001 | RA5201 | RA5145-1101 | RA5145-1102 | Fits Size #1 |
| RA5002 | RA5202 | RA5145-1201 | RA5145-1202 | Fits Size #2 |
| RA5003 | RA5203 | RA5145-1301 | RA5145-1302 | Fits Size #3 |
| RA5004 | RA5204 | RA5145-1401 | RA5145-1402 | Fits Size #4 |
| RA5005 | RA5205 | RA5145-1501 | RA5145-1502 | Fits Size #5 |
| COLOR CODE: SL = Silver, GL = Gold, BK = Black, WH = White | ||||
Pipe Size Chart
| Number | Schedule Pipe Size |
|
Fractional Pipe O.D. (Approximate) |
|
|
| 1 | "3/4" in-p | 1.050 | 1-1/16" | 3-5/16" | 26.7 |
| 2 | "1" in-p | 1.315 | 1-5/16" | 4-1/8" | 33.4 |
| 3 | "1 1/4" in-p | 1.660 | 1-21/32" | 5-7/32" | 42.2 |
| 4 | "1 1/2" in-p | 1.900 | 1-7/8" | 5-31/32" | 48.3 |
| 5 | "2" in-p | 2.375 | 2-3/8" | 7-15/32" | 60.3 |
Click here for printable Pipe Size Measuring Tape [pdf]
For pipes that are smaller than our standard clamp size, we offer adapters.
| Clamp-On Adapters | |
| RA5999-0750 | RA ADAPTER # 1 to 3/4 in OD |
| RA5999-0875 | RA ADAPTER # 1 to 7/8 in OD |
| RA5999-1000 | RA ADAPTER # 1 to 1 in OD |
| RA5999-1125 | RA ADAPTER # 2 to 1 1/8 in OD |
| RA5999-1188 | RA ADAPTER # 2 to 1 3/16 in OD |
| RA5999-1250 | RA ADAPTER # 2 to 1 1/4 in OD |
| RA5999-1375 | RA ADAPTER # 3 to 1 3/8 in OD |
| RA5999-1500 | RA ADAPTER # 3 to 1 1/2 in OD |
| RA5999-1750 | RA ADAPTER # 4 to 1 3/4 in OD |
| RA5999-2000 | RA ADAPTER # 5 to 2 in OD |
Click here for printable Pipe Size Measuring Tape [pdf]
