Clamp On Accesories

Light Mount

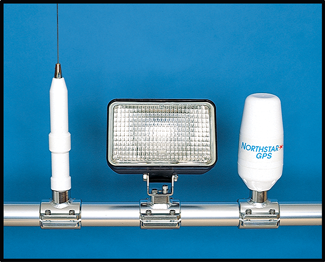

Heavy duty Clamp-On brackets come ready to mount lights, fixed antennas or flags (not shown). These brackets are designed to fit standard size aluminum pipe. Constructed from marine grade aluminum, all brackets are anodized after fabrication for 100% anodized protection. These brackets come standard with bright silver anodized finish but can be special ordered in gold or black anodized for a additional charge. Quickly attached or detached with only an Allen Wrench, they are the perfect retro-fit item.

Click here for printable  Pipe Size Measuring Tape [pdf]

CLAMP-ON LIGHT BRACKETS • (Mounts to Horizontal or Vertical Pipe)
LT520# Note: Specify Pipe Size Number (#).

CLAMP-ON ANTENNA MOUNT • (Non-Adjustable • Mounts to Horizontal Pipe)
AT510# Note: Specify Pipe Size Number (#).

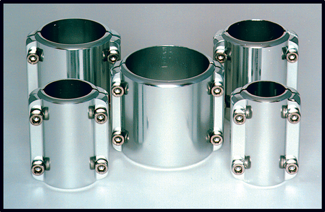

CLAMP-ON COLLARS
SC5001 #1 Fits 3/4 in-p (1.050 in. OD)
SC5002 #2 Fits 1 in-p (1.315 in. OD)
SC5003 #3 Fits 1 1/4 in-p (1.660 in. OD)
SC5004 #4 Fits 1 1/2 in-p (1.900 in. OD)
SC5005 #5 Fits 2 in-p (2.375 in. OD)
SC5006 #6 Fits 2 1/2 in-p (2.875 in. OD)


STUD-MOUNT COLLARS• 7/8-14 x 1-1/4” STUD
SC5301 #1 Fits 3/4 in-p (1.050 in. OD)
SC5302 #2 Fits 1 in-p (1.315 in. OD)
SC5303 #3 Fits 1 1/4 in-p (1.660 in. OD)
SC5304 #4 Fits 1 1/2 in-p (1.900 in. OD)
SC5305 #5 Fits 2 in-p (2.375 in. OD)
SC5391 Fits 1.750 in. OD Tube
SC5392 Fits 2.000 in. OD Tube

Number Schedule Pipe Size
  • Actual Pipe
  • Outside
  • Diameter Inches
 Fractional Pipe O.D. (Approximate)
  • Pipe Circumference
  • Actual Pipe Outside Diameter mm
1 3/4 in-p 1.050 1-1/16" 3-5/16" 26.7
2 1 in-p 1.315 1-5/16" 4-1/8" 33.4
3 1 1/4 in-p 1.660 1-21/32" 5-7/32" 42.2
4 1 1/2 in-p 1.900 1-7/8" 5-31/32" 48.3
5 2 in-p 2.375 2-3/8" 7-15/32" 60.3



For pipes that are smaller than our standard clamp size, we offer adapters.

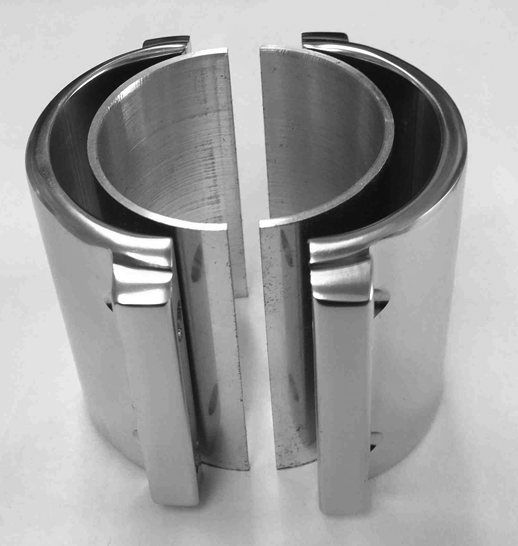

Clamp-On Adapters
RA5999-0750 RA ADAPTER # 1 to 3/4 in OD
RA5999-0875 RA ADAPTER # 1 to 7/8 in OD
RA5999-1000 RA ADAPTER # 1 to 1 in OD
RA5999-1125 RA ADAPTER # 2 to 1 1/8 in OD
RA5999-1188 RA ADAPTER # 2 to 1 3/16 in OD
RA5999-1250 RA ADAPTER # 2 to 1 1/4 in OD
RA5999-1375 RA ADAPTER # 3 to 1 3/8 in OD
RA5999-1500 RA ADAPTER # 3 to 1 1/2 in OD
RA5999-1750 RA ADAPTER # 4 to 1 3/4 in OD
RA5999-2000 RA ADAPTER # 5 to 2 in OD
